5.5dBi 40cm Fiberglass Antenna
$34.00
Skip to product information
Specs and Documentation
5.5dBi 40cm Fiberglass Antenna
$34.00
A rugged 915MHz fiberglass omnidirectional antenna with 5.5dBi gain, IP67-rated waterproofing, and N-type connectivity, engineered for reliable long-range communication in demanding outdoor and industrial environments.
Does not come with cables or mounting hardware
Electrical Parameters
- Frequency Range: 860-940MHz
- Center Frequency: 915MHz
- Antenna Gain: 5.5dBi
- VSWR: ≤2.0
- Polarization: Vertical

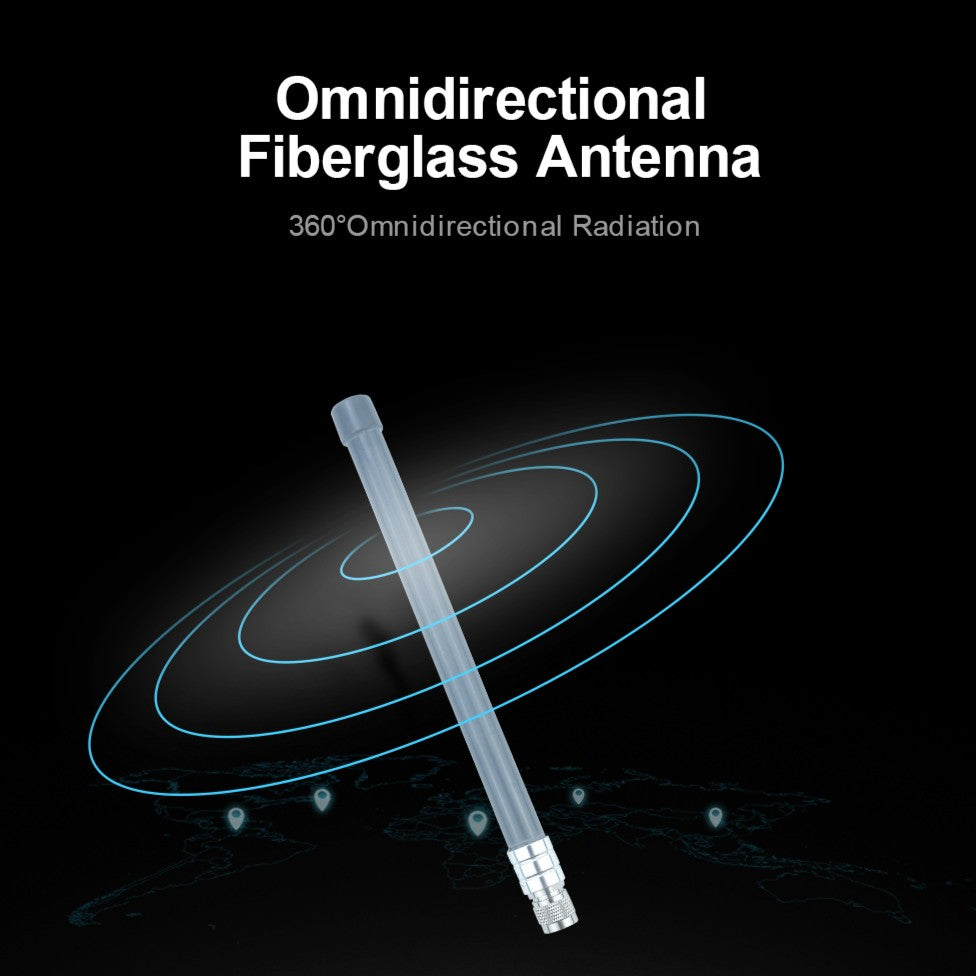

- Radiation Pattern: Omnidirectional
- Input Impedance: 50Ω
- Power Capacity: 100W
Physical Parameters

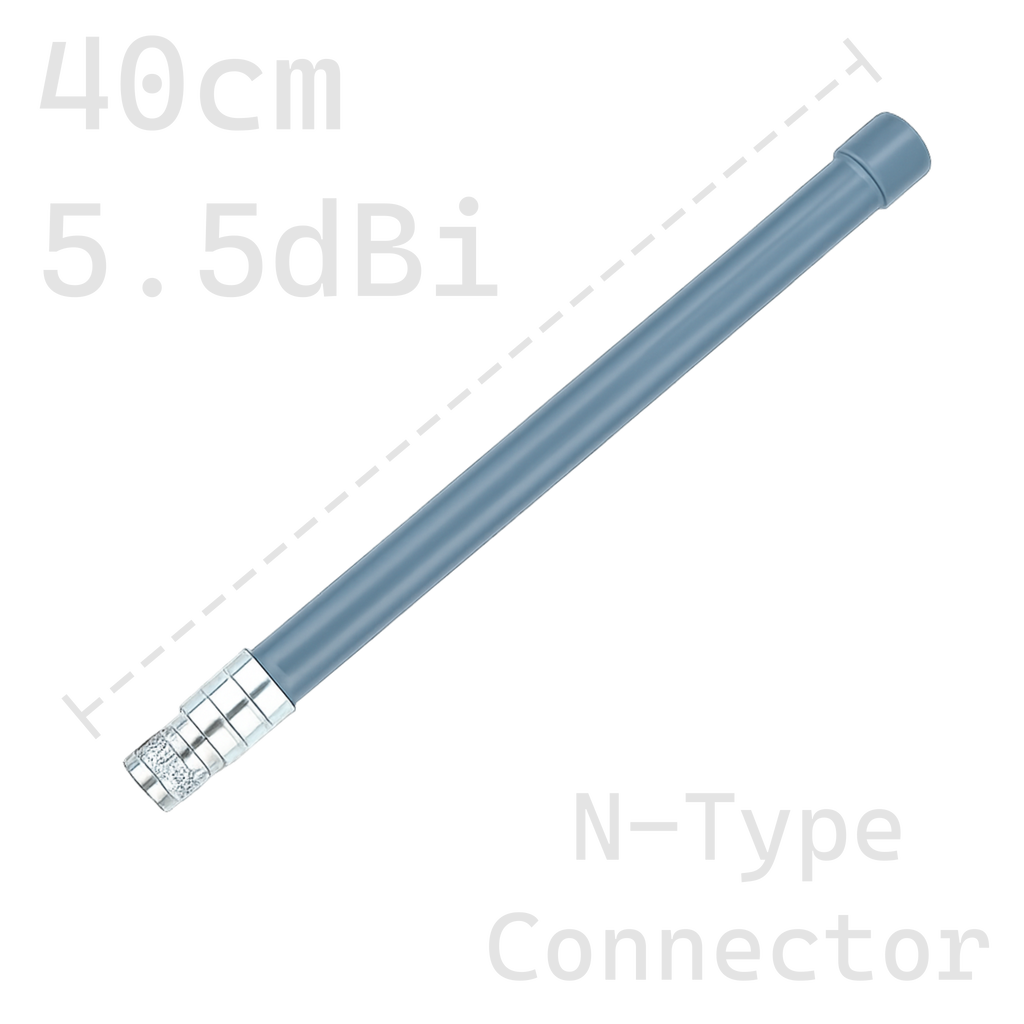

- Dimensions: 400mm length
- Diameter: Φ20mm
- Weight: 150g
- Material: Fiberglass

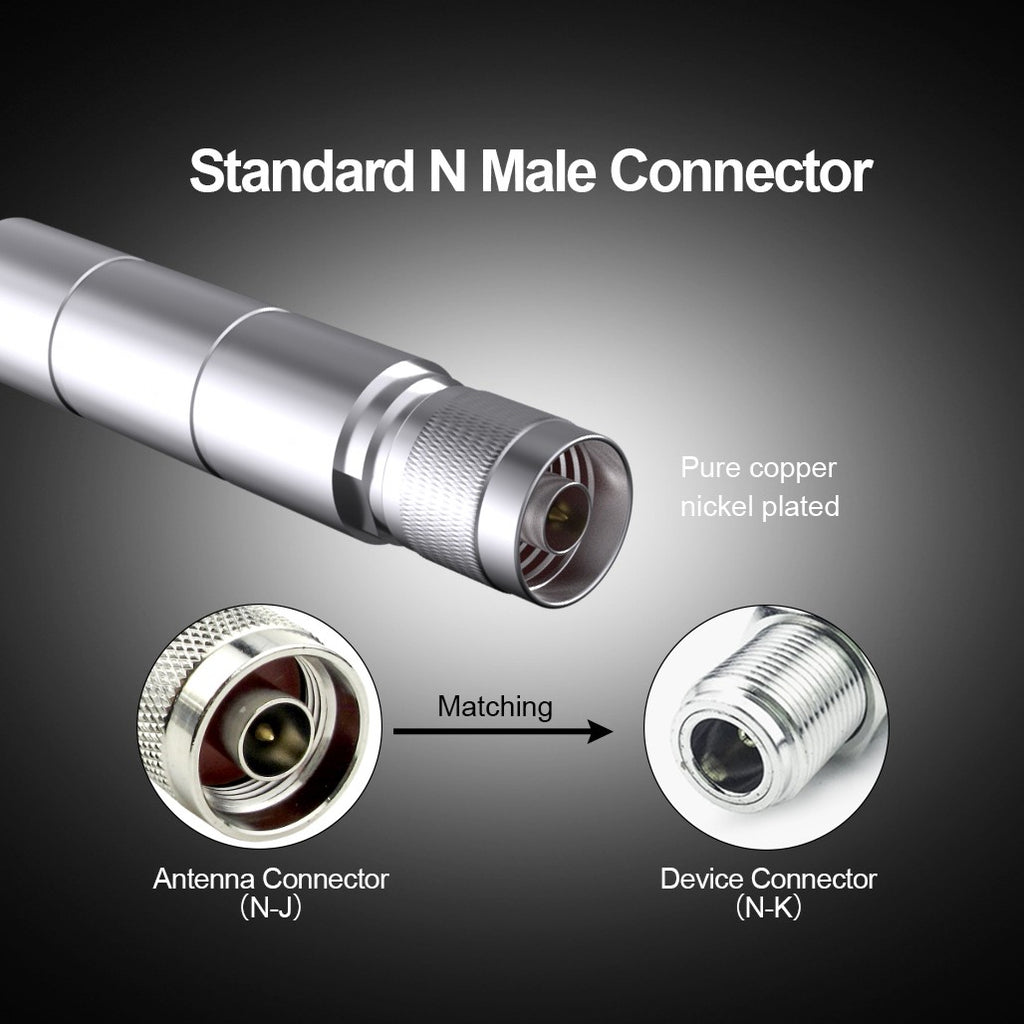

- Connector: N-J (N-male)
- Operating Temperature: -40℃ to +85℃
